Asus
Asus ROG Phone II ZS660KL

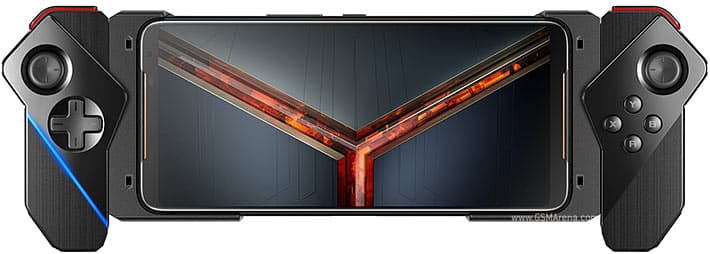

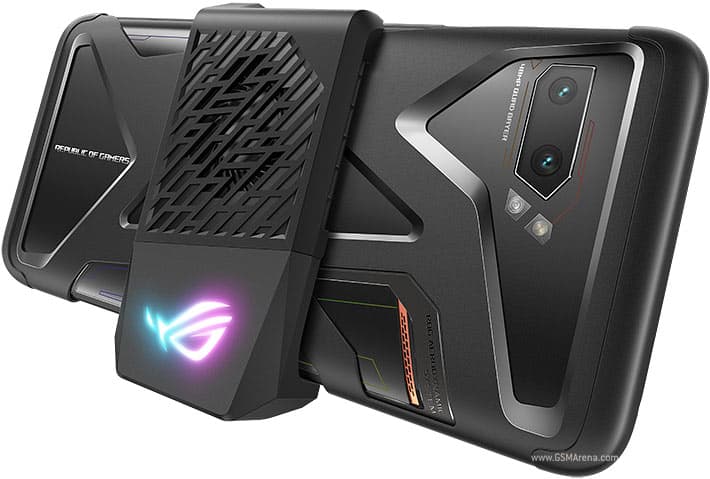

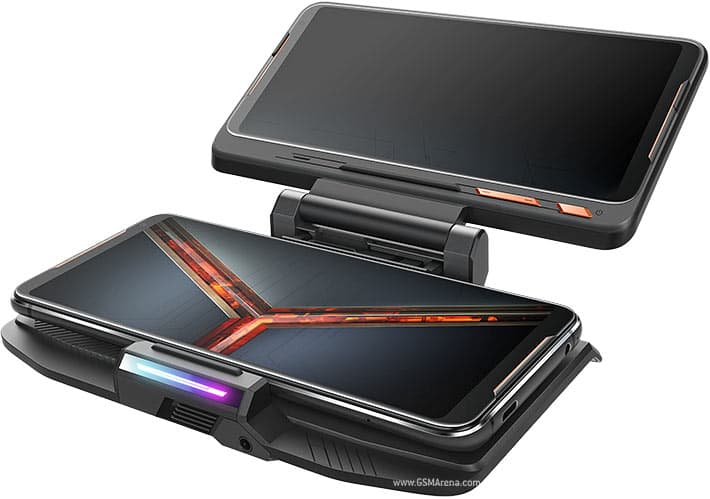

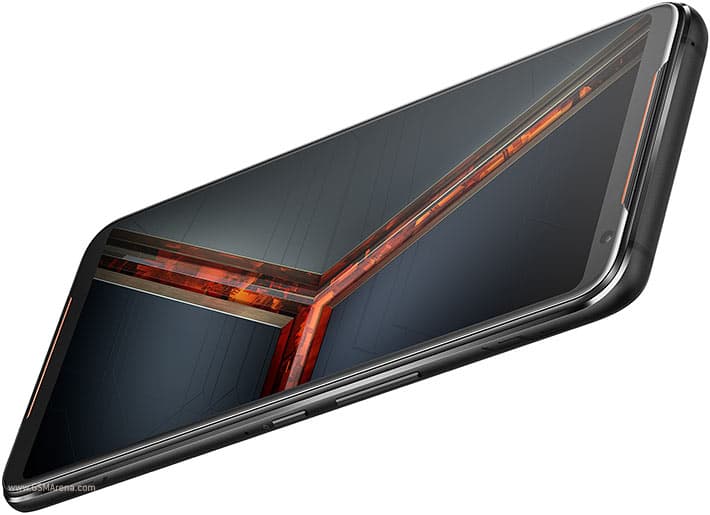

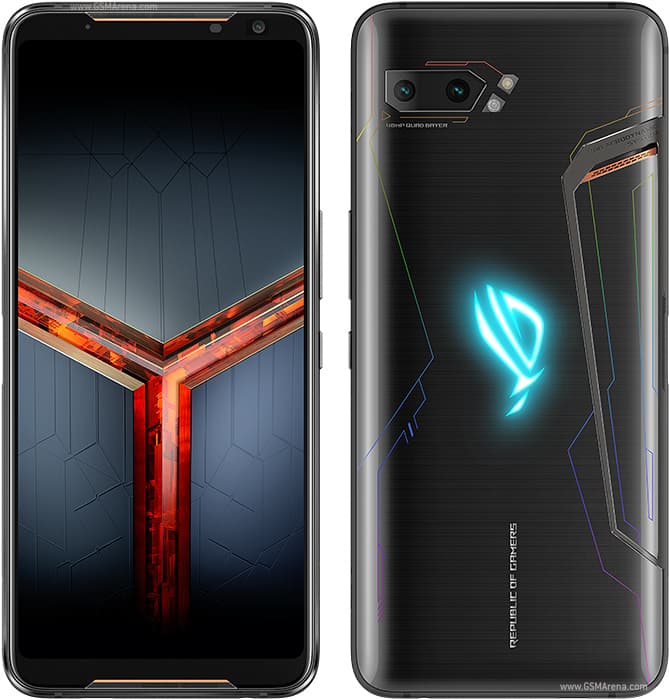

Gallery
Specifications are collected from publicly available sources and may not be 100% accurate. We do not guarantee the completeness or correctness of the information presented.
Full Specifications
Launch
| Announced | 2019, July 22. Released 2019, September |
| Status | Discontinued |
Platform
| OS | Android 9.0 (Pie), ROG UI |
| Chipset | Qualcomm SM8150 Snapdragon 855+ (7 nm) |
| CPU | Octa-core (1x2.96 GHz Kryo 485 & 3x2.42 GHz Kryo 485 & 4x1.78 GHz Kryo 485) |
| GPU | Adreno 640 (700 MHz) |
Body
| Dimensions | 171 x 77.6 x 9.5 mm (6.73 x 3.06 x 0.37 in) |
| Weight | 240 g (8.47 oz) |
| SIM | Nano-SIM + Nano-SIM |
Display
| Type | AMOLED, 1B colors, 120Hz, HDR10 |
| Size | 6.59 inches, 106.6 cm2 (~80.3% screen-to-body ratio) |
| Diagonal | 6.59 inches |
| Resolution | 1080 x 2340 pixels, 19.5:9 ratio (~391 ppi density) |
| Screen Resolution (px) | 1080x2340 |
| Pixel Density | 391 ppi |
| Protection | Corning Gorilla Glass 6 |
Memory
| Card Slot | No |
| Internal | 128GB 8GB RAM, 256GB 12GB RAM, 512GB 12GB RAM, 1TB 12GB RAM |
| RAM | 8 / 12 GB |
| Storage | 128 GB / 256 GB / 512 GB / 1 TB |
Network
| 2G Bands | Supported |
| 3G Bands | Supported |
| 4G Bands | Supported |
| 5G Bands | Not supported |
Main Camera
| Camera Module(s) | 48 MP, f/1.8, 26mm (wide), 1/2.0", 0.8µm, PDAF 13 MP, f/2.4, 11mm (ultrawide) |
| Features | Laser AF, LED flash, HDR, panorama |
| Video | 4K@30/60fps, 1080p@30/60/240fps, 720p@480fps; gyro-EIS (except @240/480fps) |
Front Camera
| Camera Module(s) | 24MP, f/2.2, 0.9µm |
| Features | Panorama, HDR |
| Video | 1080p@30fps |
Connectivity & Features
| WLAN / Wi-Fi | Wi-Fi 802.11 a/b/g/n/ac/ad, dual-band, Wi-Fi Direct |
| Bluetooth | 5.0, A2DP, LE, aptX HD |
| GPS / Positioning | GPS (L1+L5), GLONASS, BDS, GALILEO, QZSS |
| NFC | Yes |
| Sensors | Fingerprint (under display, optical), accelerometer, gyro, proximity, compass |
Battery
| Type | Li-Po 6000 mAh, non-removable |
| Capacity | 6000 mAh |
| Charging | 30W wired 10W reverse wired, QC4 |
Miscellaneous
| Colors | Matte Black, Glossy Black |
| Models | ASUS_I001D, I001DA, I001DE, I001DC, I001DB, I001D, I001DD |
| Price | About 1070 EUR |
| Category | Smartphone |
