Asus

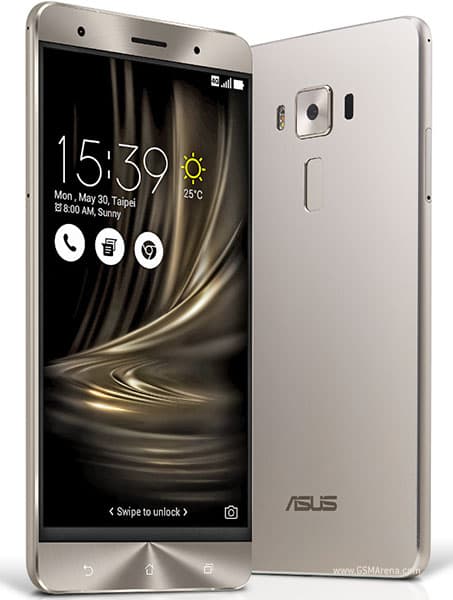

Asus Zenfone 3 Deluxe ZS570KL

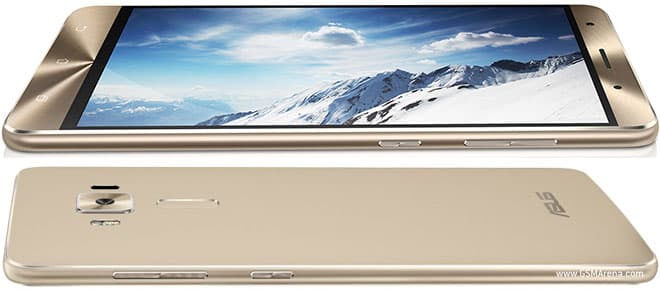

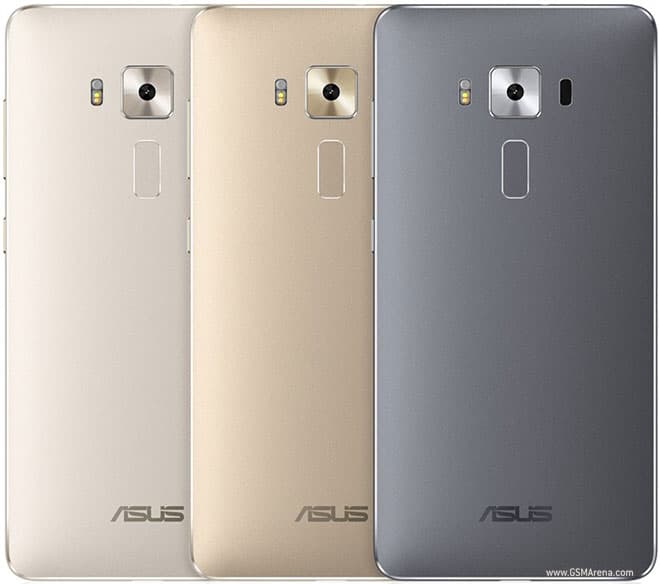

Gallery
Specifications are collected from publicly available sources and may not be 100% accurate. We do not guarantee the completeness or correctness of the information presented.
Full Specifications
Launch
| Announced | 2016, May. Released 2016, August |
| Status | Discontinued |
Platform
| OS | Android 6.1 (Marshmallow), upgradable to Android 8 (Oreo), ZenUI 3 |
| Chipset | Qualcomm MSM8996 Snapdragon 820 (14 nm)Qualcomm MSM8996 Snapdragon 821 (14 nm) |
| CPU | Quad-core (2x2.15 GHz Kryo & 2x1.6 GHz Kryo)Quad-core (2x2.4 GHz Kryo & 2x2.0 GHz Kryo) |
| GPU | Adreno 530 |
Body
| Dimensions | 156.4 x 77.4 x 7.5 mm (6.16 x 3.05 x 0.30 in) |
| Weight | 170 g (6.00 oz) |
| SIM | Nano-SIM + Micro-SIM |
Display
| Type | Super AMOLED |
| Size | 5.7 inches, 89.6 cm2 (~74.0% screen-to-body ratio) |
| Diagonal | 5.7 inches |
| Resolution | 1080 x 1920 pixels, 16:9 ratio (~386 ppi density) |
| Screen Resolution (px) | 1080x1920 |
| Pixel Density | 386 ppi |
| Protection | Corning Gorilla Glass 4 |
Memory
| Card Slot | microSDXC (uses shared SIM slot) |
| Internal | 64GB 4GB RAM, 64GB 6GB RAM, 128GB 4GB RAM, 256GB 6GB RAM |
| RAM | 4 / 6 GB |
| Storage | 64 GB / 128 GB / 256 GB |
Network
| 2G Bands | Supported |
| 3G Bands | Supported |
| 4G Bands | Supported |
| 5G Bands | Not supported |
Main Camera
| Camera Module(s) | 23 MP, f/2.0, 1/2.6", 1.0µm, PDAF, 4-axis OIS |
| Features | Laser AF, Dual-LED dual-tone flash, HDR, panorama |
| Video | 4K@30fps |
Front Camera
| Camera Module(s) | 8 MP, f/2.0 |
| Video | 1080p@30fps |
Connectivity & Features
| WLAN / Wi-Fi | Wi-Fi 802.11 a/b/g/n/ac, Wi-Fi Direct |
| Bluetooth | 4.2, A2DP, EDR, LE |
| GPS / Positioning | GPS, GLONASS, BDS |
| NFC | Yes |
| Sensors | Fingerprint (rear-mounted), accelerometer, gyro, proximity, compass |
Battery
| Type | Li-Ion 3000 mAh, non-removable |
| Capacity | 3000 mAh |
| Charging | 18W wired, QC3, 60% in 40 min |
Miscellaneous
| Colors | Glacier Silver, Titanium Gray, Shimmer Gold |
| Models | Z016D, Z016S |
| Price | About 230 EUR |
| Category | Smartphone |
