Asus

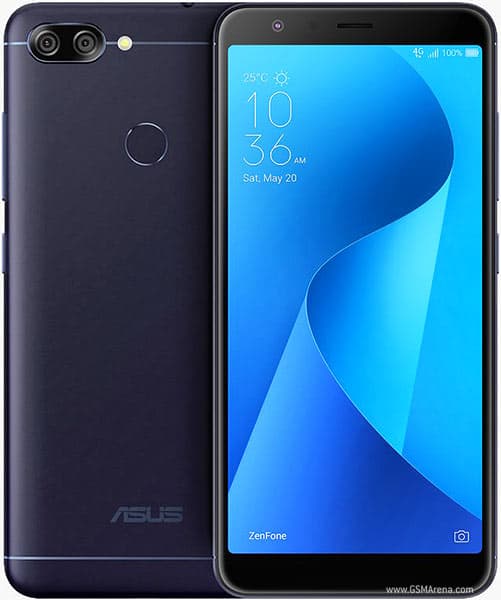

Asus Zenfone Max Plus (M1) ZB570TL
Gallery
Specifications are collected from publicly available sources and may not be 100% accurate. We do not guarantee the completeness or correctness of the information presented.
Full Specifications
Launch
| Announced | 2017, November. Released 2017, December |
| Status | Discontinued |
Platform
| OS | Android 7 (Nougat), ZenUI 4 |
| Chipset | Mediatek MT6750T (28 nm) |
| CPU | Octa-core (4x1.5 GHz Cortex-A53 & 4x1.0 GHz Cortex-A53) |
| GPU | Mali-T860MP2 |
Body
| Dimensions | 152.6 x 73 x 8.8 mm (6.01 x 2.87 x 0.35 in) |
| Weight | 160 g (5.64 oz) |
| SIM | Nano-SIM + Nano-SIM |
Display
| Type | IPS LCD |
| Size | 5.7 inches, 83.8 cm2 (~75.3% screen-to-body ratio) |
| Diagonal | 5.7 inches |
| Resolution | 1080 x 2160 pixels, 18:9 ratio (~424 ppi density) |
| Screen Resolution (px) | 1080x2160 |
| Pixel Density | 424 ppi |
Memory
| Card Slot | microSDXC (dedicated slot) |
| Internal | 16GB 2GB RAM, 32GB 3GB RAM, 64GB 4GB RAM |
| RAM | 2 / 3 / 4 GB |
| Storage | 16 GB / 32 GB / 64 GB |
Network
| 2G Bands | Supported |
| 3G Bands | Supported |
| 4G Bands | Supported |
| 5G Bands | Not supported |
Main Camera
| Camera Module(s) | 16 MP, f/2.0, 35mm (standard), PDAF 8 MP, 17mm (ultrawide), no AF |
| Features | LED flash, HDR, panorama |
| Video | 1080p@30fps |
Front Camera
| Camera Module(s) | 8 MP, f/2.0, 25mm (wide) |
Connectivity & Features
| WLAN / Wi-Fi | Wi-Fi 802.11 b/g/n, Wi-Fi Direct |
| Bluetooth | 4.0, A2DP, LE |
| GPS / Positioning | GPS, GLONASS |
| NFC | No |
| Sensors | Fingerprint (rear-mounted), accelerometer, gyro, proximity, compass |
Battery
| Type | Li-Po 4130 mAh, non-removable |
| Capacity | 4130 mAh |
| Charging | 10W wired Reverse wired |
Miscellaneous
| Colors | Sunlight Gold, Azure Silver, Deepsea Black |
| Models | X018D |
| Price | About 250 EUR |
| Category | Smartphone |
