OnePlus

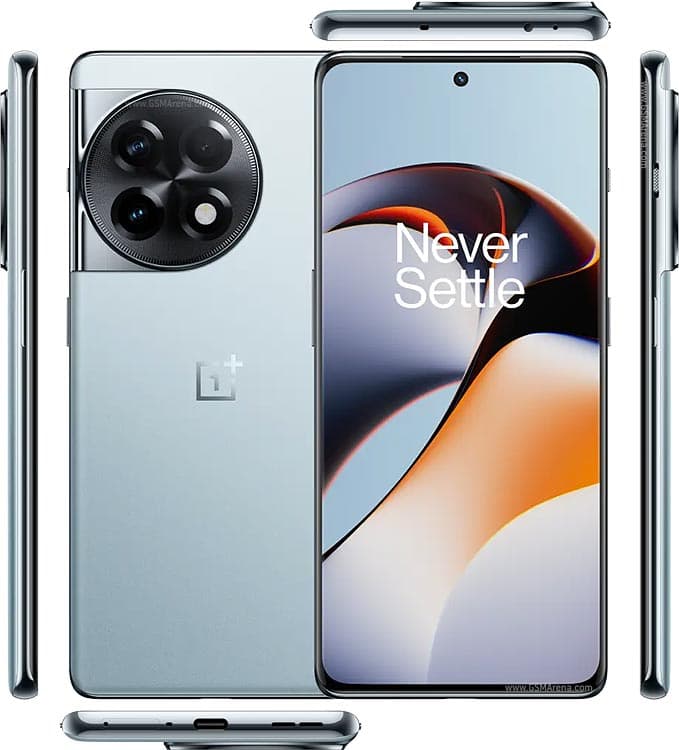

OnePlus Ace 2

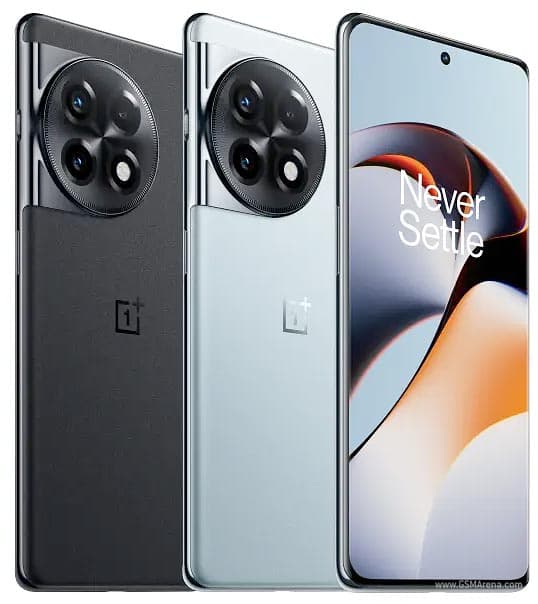

Gallery
Specifications are collected from publicly available sources and may not be 100% accurate. We do not guarantee the completeness or correctness of the information presented.
Full Specifications
Launch
| Announced | 2023, February 07 |
| Status | Available. Released 2023, February 13 |
Platform
| OS | Android 13, ColorOS 13 |
| Chipset | Qualcomm SM8475 Snapdragon 8+ Gen 1 (4 nm) |
| CPU | Octa-core (1x3.19 GHz Cortex-X2 & 3x2.75 GHz Cortex-A710 & 4x1.80 GHz Cortex-A510) |
| GPU | Adreno 730 |
Body
| Dimensions | 163.4 x 74.3 x 8.7 mm (6.43 x 2.93 x 0.34 in) |
| Weight | 204 g (7.20 oz) |
| SIM | Nano-SIM + Nano-SIM |
Display
| Type | AMOLED, 1B colors, 120Hz, HDR10+ |
| Size | 6.74 inches, 109.2 cm2 (~90.0% screen-to-body ratio) |
| Diagonal | 6.74 inches |
| Resolution | 1240 x 2772 pixels, 20:9 ratio (~451 ppi density) |
| Screen Resolution (px) | 1240x2772 |
| Pixel Density | 451 ppi |
| Protection | Asahi Glass |
Memory
| Card Slot | No |
| Internal | 256GB 12GB RAM, 256GB 16GB RAM, 512GB 16GB RAM, 512GB 18GB RAM |
| RAM | 12 / 16 / 18 GB |
| Storage | 256 GB / 512 GB |
Network
| 2G Bands | Supported |
| 3G Bands | Supported |
| 4G Bands | Supported |
| 5G Bands | Supported |
Main Camera
| Camera Module(s) | 50 MP, f/1.8, 24mm (wide), 1/1.56", 1.0µm, PDAF, OIS 8 MP, f/2.2, 16mm, 120˚ (ultrawide), 1/4.0", 1.12µm 2 MP, f/2.4, (macro) |
| Features | Color spectrum sensor, LED flash, HDR, panorama |
| Video | 4K@30/60fps, 1080p@30/60/120/240fps, gyro-EIS |
Front Camera
| Camera Module(s) | 16 MP, f/2.4, 26mm (wide), 1/3.09", 1.0µm |
| Features | HDR |
| Video | 1080p@30fps |
Connectivity & Features
| WLAN / Wi-Fi | Wi-Fi 802.11 a/b/g/n/ac/6, dual-band |
| Bluetooth | 5.3, A2DP, LE |
| GPS / Positioning | GPS (L1+L5), GLONASS (G1), BDS (B1I+B1c+B2a), GALILEO (E1+E5a), QZSS (L1+L5) |
| NFC | Yes |
| Sensors | Fingerprint (under display, optical), accelerometer, gyro, proximity, compass |
Battery
| Type | Li-Po 5000 mAh |
| Capacity | 5000 mAh |
| Charging | 100W wired, 100% in 25 min |
Miscellaneous
| Colors | Black, Glacier Blue, Red |
| Models | PHK110 |
| Price | About 390 EUR |
| Category | Smartphone |
