OnePlus
OnePlus Ace 5

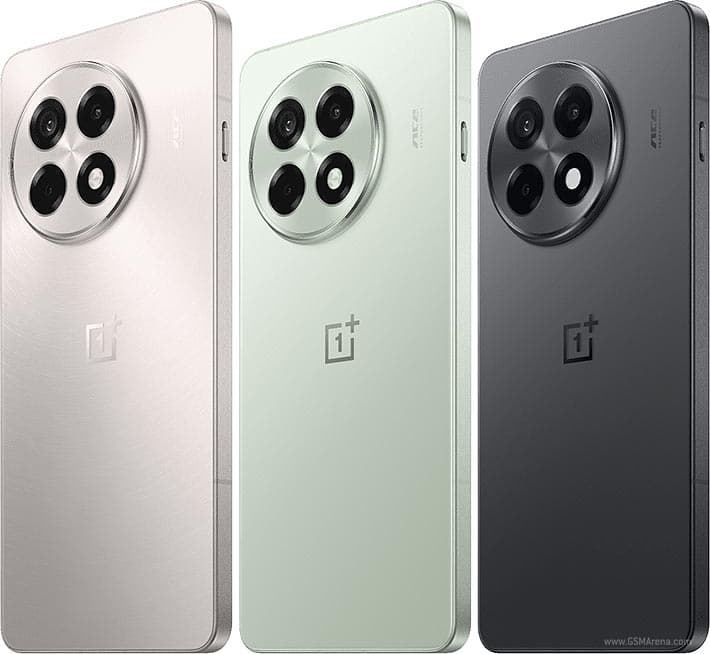

Gallery
Specifications are collected from publicly available sources and may not be 100% accurate. We do not guarantee the completeness or correctness of the information presented.
Full Specifications
Launch
| Announced | 2024, December 26 |
| Status | Available. Released 2024, December 26 |
Platform
| OS | Android 15, ColorOS 15 |
| Chipset | Qualcomm SM8650-AB Snapdragon 8 Gen 3 (4 nm) |
| CPU | Octa-core (1x3.3 GHz Cortex-X4 & 3x3.2 GHz Cortex-A720 & 2x3.0 GHz Cortex-A720 & 2x2.3 GHz Cortex-A520) |
| GPU | Adreno 750 |
Body
| Dimensions | 161.7 x 75.8 x 8.1 mm (6.37 x 2.98 x 0.32 in) |
| Weight | 206 g or 223 g (7.27 oz) |
| SIM | Nano-SIM + Nano-SIM |
Display
| Type | LTPO AMOLED, 1B colors, 120Hz, HDR10+, Dolby Vision, 800 nits (typ), 1600 nits (HBM), 4500 nits (peak) |
| Size | 6.78 inches, 111.7 cm2 (~91.2% screen-to-body ratio) |
| Diagonal | 6.78 inches |
| Resolution | 1264 x 2780 pixels (~450 ppi density) |
| Screen Resolution (px) | 1264x2780 |
| Pixel Density | 450 ppi |
| Protection | Crystal Shield Glass |
Memory
| Card Slot | No |
| Internal | 256GB 12GB RAM, 256GB 16GB RAM, 512GB 12GB RAM, 512GB 16GB RAM, 1TB 16GB RAM |
| RAM | 12 / 16 GB |
| Storage | 256 GB / 512 GB / 1 TB |
Network
| 2G Bands | Supported |
| 3G Bands | Supported |
| 4G Bands | Supported |
| 5G Bands | Supported |
Main Camera
| Camera Module(s) | 50 MP, f/1.8, 24mm (wide), 1/1.56", 1.0µm, PDAF, OIS 8 MP, f/2.2, 16mm, 112˚ (ultrawide), 1/4.0", 1.12µm 2 MP, f/2.4, (macro) |
| Features | Color spectrum sensor, Dual-LED flash, HDR, panorama |
| Video | 4K@30/60fps, 1080p@30/60/120/240fps, gyro-EIS, OIS |
Front Camera
| Camera Module(s) | 16 MP, f/2.4, 24mm (wide), 1/3", 1.0µm |
| Features | HDR, panorama |
| Video | 1080p@30fps, gyro-EIS |
Connectivity & Features
| WLAN / Wi-Fi | Wi-Fi 802.11 a/b/g/n/ac/6/7, dual-band |
| Bluetooth | 5.4, A2DP, LE, aptX HD, LHDC 5 |
| GPS / Positioning | GPS (L1+L5), GLONASS (G1), BDS (B1I+B1c+B2a), GALILEO (E1+E5a), QZSS (L1+L5) |
| NFC | Yes |
| Sensors | Fingerprint (under display, optical), accelerometer, gyro, proximity, compass |
Battery
| Type | Si/C Li-Ion 6415 mAh |
| Capacity | 6415 mAh |
| Charging | 80W wired, 18W PD, 55% in 15 min, 100% in 35 min |
Miscellaneous
| Colors | Gray, White, Green |
| Models | PKG110 |
| Price | About 300 EUR |
| Category | Smartphone |
