OnePlus

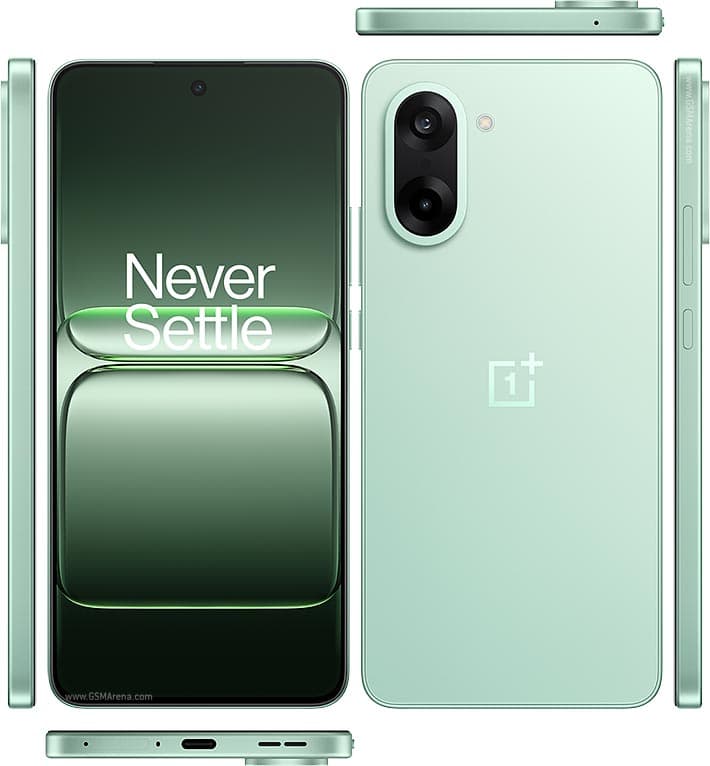

OnePlus Ace 5 Racing

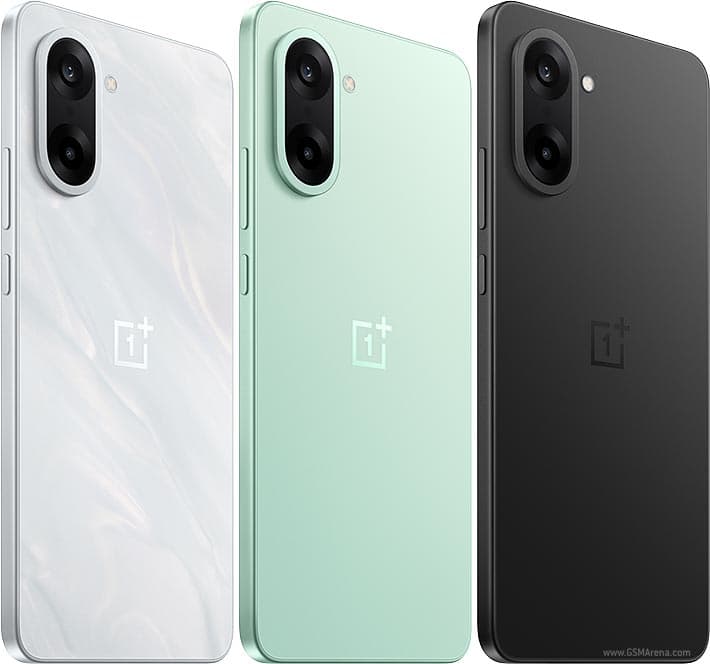

Gallery
Specifications are collected from publicly available sources and may not be 100% accurate. We do not guarantee the completeness or correctness of the information presented.
Full Specifications
Launch
| Announced | 2025, May 27 |
| Status | Available. Released 2025, May 27 |
Platform
| OS | Android 15, ColorOS 15 |
| Chipset | Mediatek Dimensity 9400e (4 nm) |
| CPU | Octa-core (1x3.4 GHz Cortex-X4 & 3x2.85 GHz Cortex-X4 & 4x2.0 GHz Cortex-A720) |
| GPU | Immortalis-G720 MC12 |
Body
| Dimensions | 163.6 x 76 x 8.2 mm (6.44 x 2.99 x 0.32 in) |
| Weight | 200 g (7.05 oz) |
| SIM | Nano-SIM + Nano-SIM |
Display
| Type | AMOLED, 1B colors, 120Hz, HDR Vivid, 800 nits (typ), 1300 nits (HBM) |
| Size | 6.77 inches, 111.5 cm2 (~89.7% screen-to-body ratio) |
| Diagonal | 6.77 inches |
| Resolution | 1080 x 2392 pixels (~387 ppi density) |
| Screen Resolution (px) | 1080x2392 |
| Pixel Density | 387 ppi |
| Protection | Crystal Shield Glass |
Memory
| Card Slot | No |
| Internal | 256GB 12GB RAM, 256GB 16GB RAM, 512GB 12GB RAM, 512GB 16GB RAM |
| RAM | 12 / 16 GB |
| Storage | 256 GB / 512 GB |
Network
| 2G Bands | Supported |
| 3G Bands | Supported |
| 4G Bands | Supported |
| 5G Bands | Supported |
Main Camera
| Camera Module(s) | 50 MP, f/1.8, 26mm (wide), 1/1.95", 0.8µm, PDAF, OIS 2 MP, f/2.4, (depth) |
| Features | LED flash, HDR, panorama |
| Video | 4K@30/60fps, 1080p@30/60/120/240fps, gyro-EIS, OIS |
Front Camera
| Camera Module(s) | 16 MP, f/2.4, 23mm (wide), 1/3", 1.0µm |
| Features | HDR, panorama |
| Video | 1080p@30/60fps, gyro-EIS |
Connectivity & Features
| WLAN / Wi-Fi | Wi-Fi 802.11 a/b/g/n/ac/6/7, dual-band |
| Bluetooth | 5.4, A2DP, LE, aptX HD, LHDC 5 |
| GPS / Positioning | GPS, GALILEO, GLONASS, BDS, QZSS |
| NFC | Yes |
| Sensors | Fingerprint (under display, optical), accelerometer, gyro, proximity, compass |
Battery
| Type | Si/C Li-Ion 7100 mAh |
| Capacity | 7100 mAh |
| Charging | 80W wired, 33W PPS, 18W PD/QC Bypass charging |
Miscellaneous
| Colors | Black, White, Green |
| Models | PLF110 |
| Price | About 220 EUR |
| Category | Smartphone |
