OnePlus
OnePlus Ace 5 Ultra

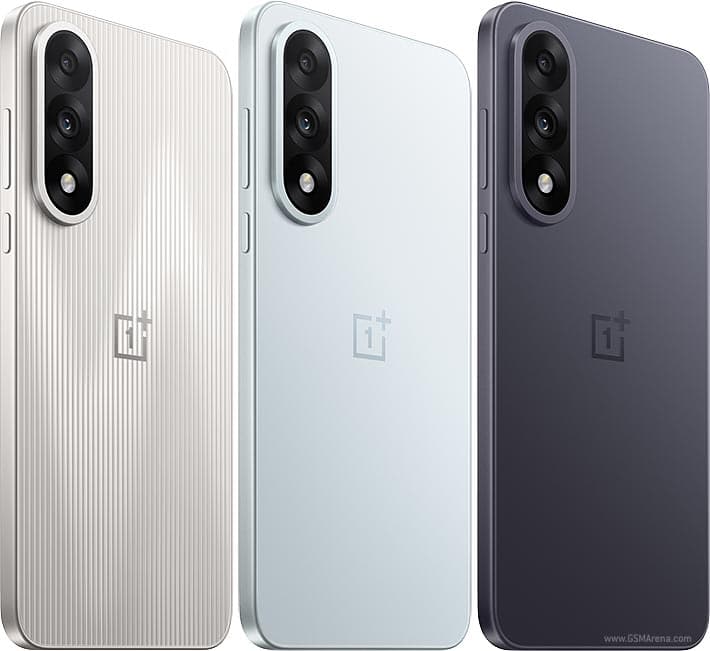

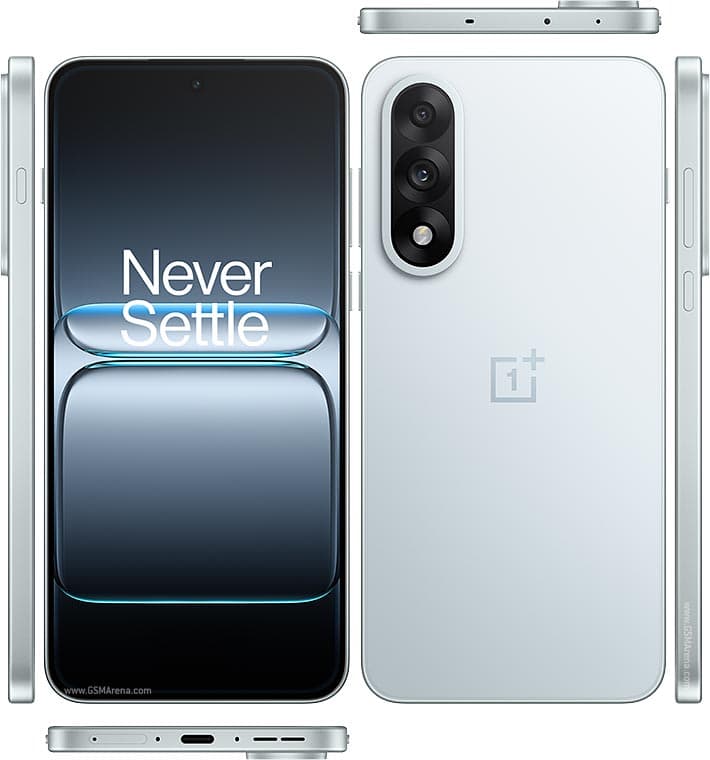

Gallery
Specifications are collected from publicly available sources and may not be 100% accurate. We do not guarantee the completeness or correctness of the information presented.
Full Specifications
Launch
| Announced | 2025, May 27 |
| Status | Available. Released 2025, May 27 |
Platform
| OS | Android 15, ColorOS 15 |
| Chipset | Mediatek Dimensity 9400+ (3 nm) |
| CPU | Octa-core (1x3.73 GHz Cortex-X925 & 3x3.3 GHz Cortex-X4 & 4x2.4 GHz Cortex-A720) |
| GPU | Immortalis-G925 MC12 |
Body
| Dimensions | 163.4 x 77 x 8.1 mm (6.43 x 3.03 x 0.32 in) |
| Weight | 206 g (7.27 oz) |
| SIM | Nano-SIM + Nano-SIM |
Display
| Type | AMOLED, 1B colors, 144Hz, 3840Hz PWM, HDR10+, Dolby Vision, HDR Vivid, 800 nits (typ), 1400 nits (peak) |
| Size | 6.83 inches, 113.3 cm2 (~90.1% screen-to-body ratio) |
| Diagonal | 6.83 inches |
| Resolution | 1272 x 2800 pixels (~450 ppi density) |
| Screen Resolution (px) | 1272x2800 |
| Pixel Density | 450 ppi |
| Protection | Crystal Shield Glass |
Memory
| Card Slot | No |
| Internal | 256GB 12GB RAM, 256GB 16GB RAM, 512GB 12GB RAM, 512GB 16GB RAM, 1TB 16GB RAM |
| RAM | 12 / 16 GB |
| Storage | 256 GB / 512 GB / 1 TB |
Network
| 2G Bands | Supported |
| 3G Bands | Supported |
| 4G Bands | Supported |
| 5G Bands | Supported |
Main Camera
| Camera Module(s) | 50 MP, f/1.8, 24mm (wide), 1/1.56", 1.0µm, PDAF, OIS 8 MP, f/2.2, 16mm, 112˚ (ultrawide), 1/4.0", 1.12µm |
| Features | LED flash, HDR, panorama |
| Video | 4K@30/60fps, 1080p@30/60/120/240fps, gyro-EIS, OIS |
Front Camera
| Camera Module(s) | 16 MP, f/2.4, 23mm (wide), 1/3", 1.0µm |
| Features | HDR, panorama |
| Video | 1080p@30fps, gyro-EIS |
Connectivity & Features
| WLAN / Wi-Fi | Wi-Fi 802.11 a/b/g/n/ac/6/7, dual-band |
| Bluetooth | 5.4, A2DP, LE, aptX HD, LHDC 5, BLE Audio |
| GPS / Positioning | GPS (L1+L5), GLONASS (G1), BDS (B1I+B1c+B2a+B2b), GALILEO (E1+E5a+E5b), QZSS (L1+L5), NavIC (L5) |
| NFC | Yes |
| Sensors | Fingerprint (under display, optical), accelerometer, gyro, proximity, compass |
Battery
| Type | Si/C Li-Ion 6700 mAh |
| Capacity | 6700 mAh |
| Charging | 100W wired, PD, 100% in 39 min 7.5W reverse wired Bypass charging |
Miscellaneous
| Colors | Blue, Black, Titanium |
| Models | PLC110 |
| Price | About 310 EUR |
| Category | Smartphone |
