Samsung
Samsung Galaxy Note20 Ultra 5G

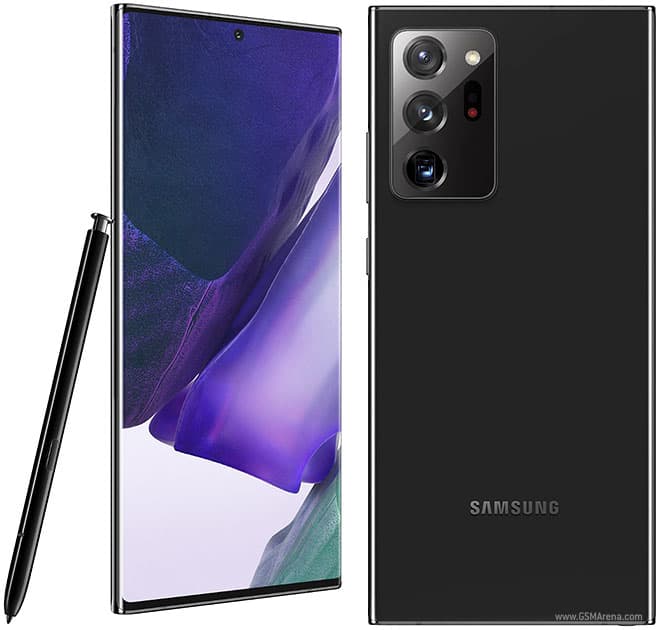

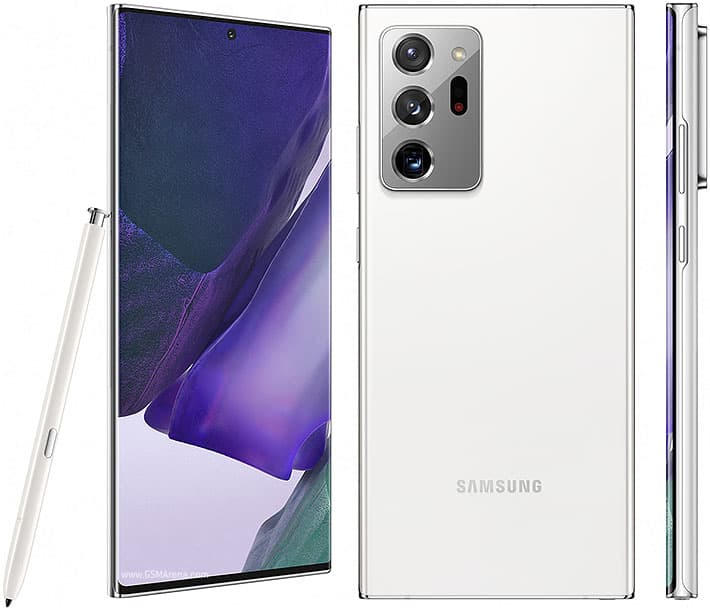

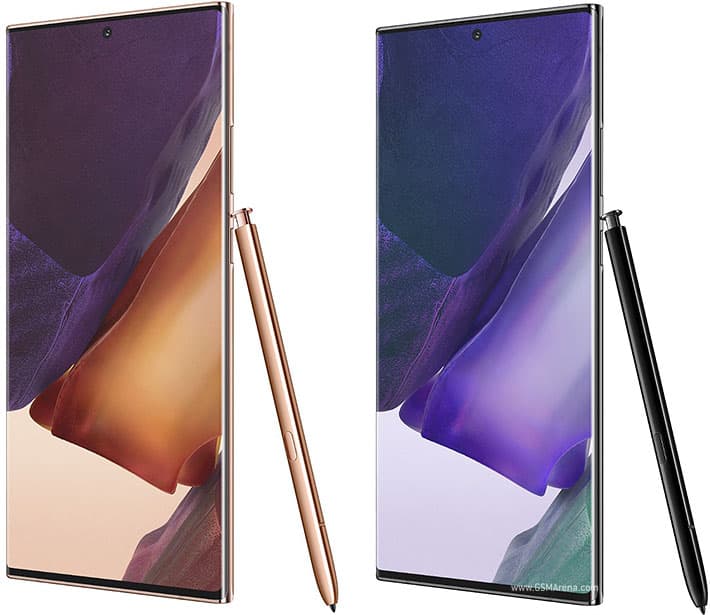

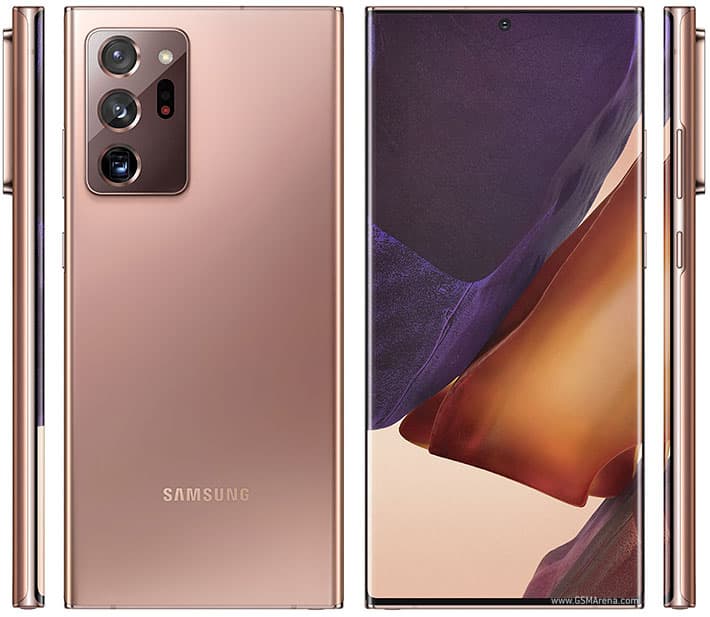

Gallery
Specifications are collected from publicly available sources and may not be 100% accurate. We do not guarantee the completeness or correctness of the information presented.
Full Specifications
Launch
| Announced | 2020, August 05 |
| Status | Available. Released 2020, August 21 |
Platform
| OS | Android 10, upgradable to Android 13, One UI 5 |
| Chipset | Exynos 990 (7 nm+) - GlobalQualcomm SM8250 Snapdragon 865 5G+ (7 nm+) - USA |
| CPU | Octa-core (2x2.73 GHz Mongoose M5 & 2x2.50 GHz Cortex-A76 & 4x2.0 GHz Cortex-A55) - GlobalOcta-core (1x3.0 GHz Kryo 585 & 3x2.42 GHz Cortex-A77 & 4x1.80 GHz Cortex-A55) - USA |
| GPU | Mali-G77 MP11 - GlobalAdreno 650 - USA |
Body
| Dimensions | 164.8 x 77.2 x 8.1 mm (6.49 x 3.04 x 0.32 in) |
| Weight | 208 g (7.34 oz) |
| SIM | · Nano-SIM + eSIM· Nano-SIM + Nano-SIM |
Display
| Type | Dynamic AMOLED 2X, 120Hz, HDR10+ |
| Size | 6.9 inches, 116.7 cm2 (~91.7% screen-to-body ratio) |
| Diagonal | 6.9 inches |
| Resolution | 1440 x 3088 pixels, 19.3:9 ratio (~496 ppi density) |
| Screen Resolution (px) | 1440x3088 |
| Pixel Density | 496 ppi |
| Protection | Corning Gorilla Glass Victus |
Memory
| Card Slot | microSDXC (uses shared SIM slot) |
| Internal | 128GB 6GB RAM, 128GB 8GB RAM, 128GB 12GB RAM, 256GB 8GB RAM, 256GB 12GB RAM, 512GB 12GB RAM |
| RAM | 6 / 8 / 12 GB |
| Storage | 128 GB / 256 GB / 512 GB |
Network
| 2G Bands | Supported |
| 3G Bands | Supported |
| 4G Bands | Supported |
| 5G Bands | Supported |
Main Camera
| Camera Module(s) | 108 MP, f/1.8, 26mm (wide), 1/1.33", 0.8µm, PDAF, OIS 12 MP, f/3.0, 120mm (periscope telephoto), 1.0µm, PDAF, OIS, 5x optical zoom, 50x hybrid zoom 12 MP, f/2.2, 120˚, 13mm (ultrawide), 1/2.55", 1.4µm |
| Features | Laser AF, LED flash, auto-HDR, panorama |
| Video | 8K@24fps, 4K@30/60fps, 1080p@30/60/240fps, 720p@960fps, HDR10+, stereo sound rec., gyro-EIS & OIS |
Front Camera
| Camera Module(s) | 10 MP, f/2.2, 26mm (wide), 1/3.2", 1.22µm, dual pixel PDAF |
| Features | HDR |
| Video | 4K@30/60fps, 1080p@30fps |
Connectivity & Features
| WLAN / Wi-Fi | Wi-Fi 802.11 a/b/g/n/ac/6, dual-band, Wi-Fi Direct |
| Bluetooth | 5.0, A2DP, LE, aptX |
| GPS / Positioning | GPS, GLONASS, BDS, GALILEO |
| NFC | Yes |
| Sensors | Fingerprint (under display, ultrasonic), accelerometer, gyro, proximity, compass, barometer |
Battery
| Type | Li-Ion 4500 mAh |
| Capacity | 4500 mAh |
| Charging | 25W wired, PD3.0 15W wireless (Qi) 4.5W reverse wireless |
Miscellaneous
| Colors | Mystic Bronze, Mystic Black, Mystic White |
| Models | SM-N986B, SM-N986B/DS, SM-N986U, SM-N986U1, SM-N986W, SM-N9860, SM-N986N, SC-53A |
| Price | $ 309.30 / C$ 500.00 / € 559.97 |
| Category | Smartphone |
